Module Structure

Module Structure#

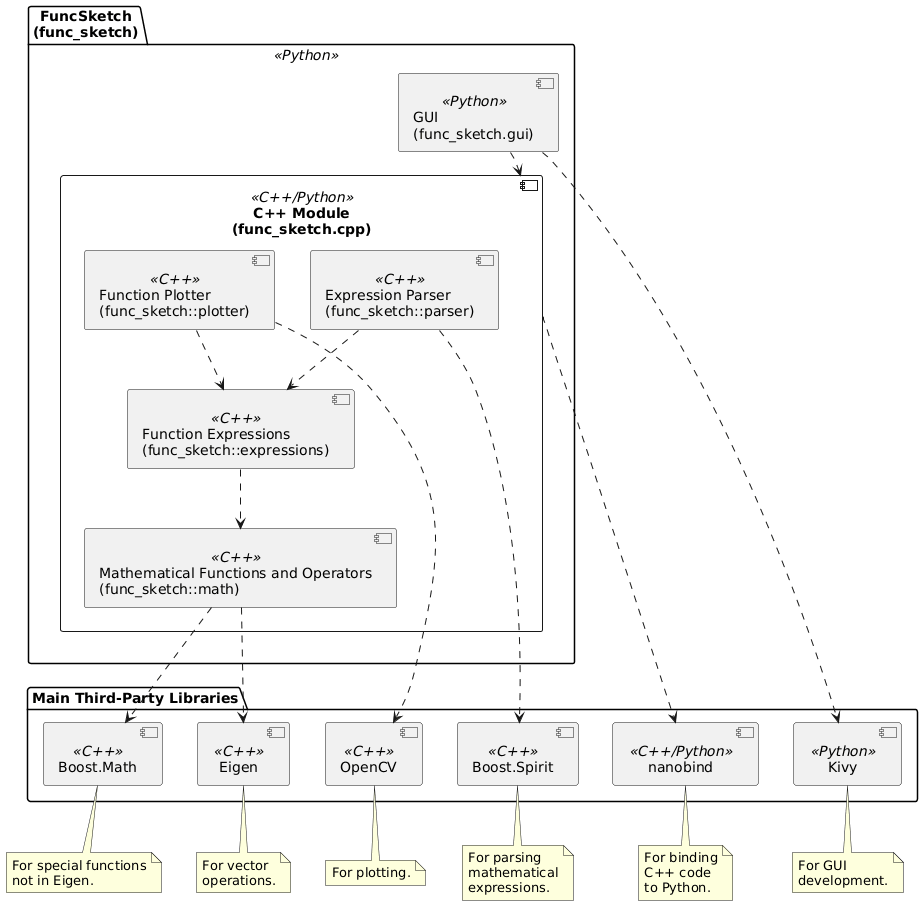

@startuml structure_module package "FuncSketch\n(func_sketch)" <<Python>> { component "GUI\n(func_sketch.gui)" <<Python>> as gui component "C++ Module\n(func_sketch.cpp)" <<C++/Python>> as cpp_module { component "Function Plotter\n(func_sketch::plotter)" <<C++>> as plotter component "Function Expressions\n(func_sketch::expressions)" <<C++>> as expressions component "Expression Parser\n(func_sketch::parser)" <<C++>> as parser component "Mathematical Functions and Operators\n(func_sketch::math)" <<C++>> as math } } package "Main Third-Party Libraries" { component "Kivy" <<Python>> component "Boost.Spirit" <<C++>> component "Boost.Math" <<C++>> component "Eigen" <<C++>> component "OpenCV" <<C++>> component "nanobind" <<C++/Python>> } gui ..> cpp_module parser ..> expressions plotter ..> expressions expressions ..> math gui ..> "Kivy" parser ..> "Boost.Spirit" math ..> "Eigen" math ..> "Boost.Math" plotter ..> "OpenCV" cpp_module ..> "nanobind" note as boost_spirit_note For parsing mathematical expressions. end note "Boost.Spirit" .. boost_spirit_note note as boost_math_note For special functions not in Eigen. end note "Boost.Math" .. boost_math_note note as eigen_note For vector operations. end note "Eigen" .. eigen_note note as opencv_note For plotting. end note "OpenCV" .. opencv_note note as nanobind_note For binding C++ code to Python. end note "nanobind" .. nanobind_note note as kivy_note For GUI development. end note "Kivy" .. kivy_note @enduml
