Basic Class Structure

Basic Class Structure#

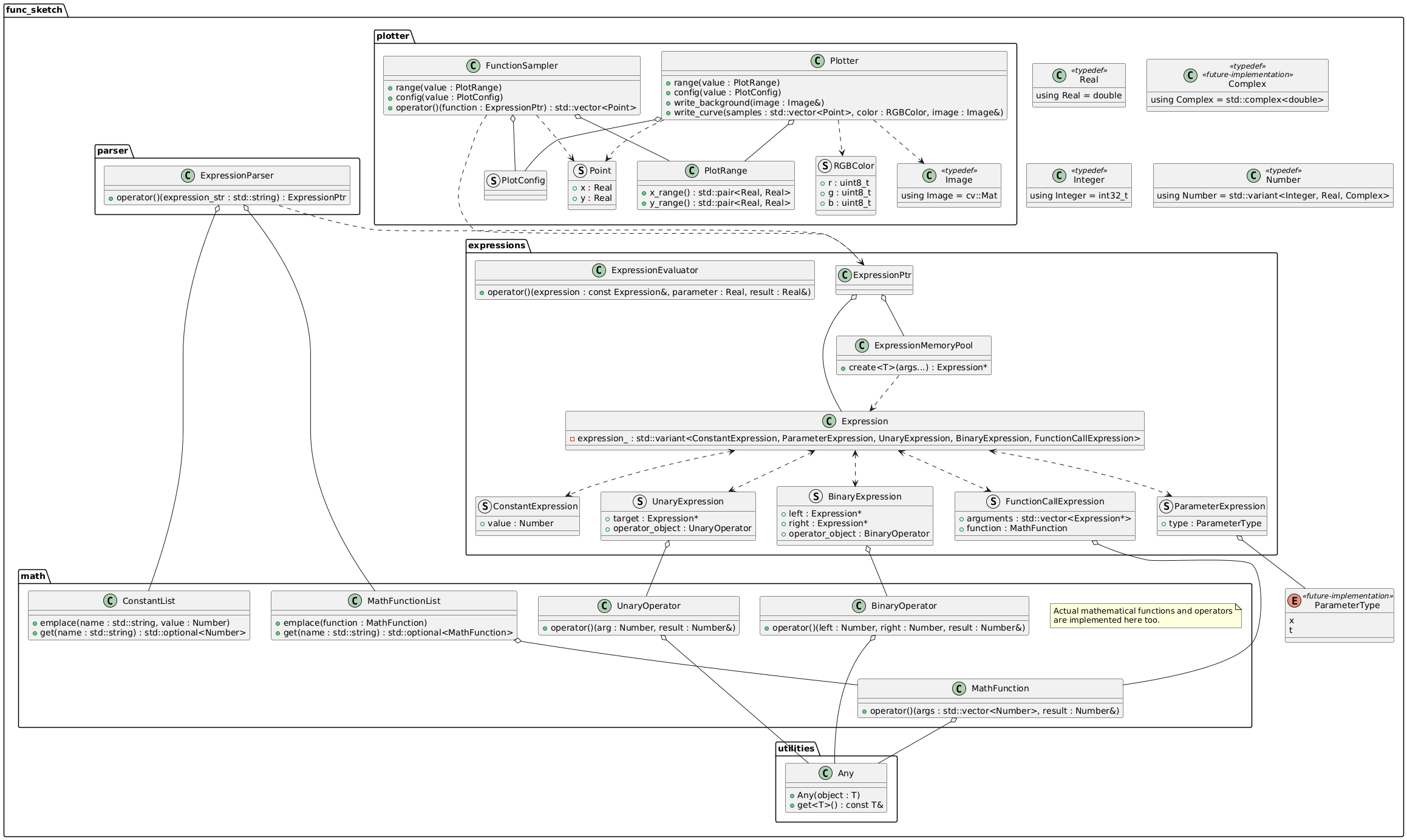

C++ Classes#

@startuml classes_cpp package func_sketch { class Real <<typedef>> { using Real = double } class Complex <<typedef>> <<future-implementation>> { using Complex = std::complex<double> } class Integer <<typedef>> { using Integer = int32_t } class Number <<typedef>> { using Number = std::variant<Integer, Real, Complex> } enum ParameterType <<future-implementation>> { x t } package utilities { class Any { + Any(object : T) + get<T>() : const T& } } package math { class UnaryOperator { + operator()(arg : Number, result : Number&) } UnaryOperator o-- Any class BinaryOperator { + operator()(left : Number, right : Number, result : Number&) } BinaryOperator o-- Any class MathFunction { + operator()(args : std::vector<Number>, result : Number&) } MathFunction o-- Any class MathFunctionList { + emplace(function : MathFunction) + get(name : std::string) : std::optional<MathFunction> } MathFunctionList o-- MathFunction class ConstantList { + emplace(name : std::string, value : Number) + get(name : std::string) : std::optional<Number> } note as math_functions_note Actual mathematical functions and operators are implemented here too. end note } package expressions { class Expression { - expression_ : std::variant<ConstantExpression, ParameterExpression, UnaryExpression, BinaryExpression, FunctionCallExpression> } struct ConstantExpression { + value : Number } Expression <..> ConstantExpression struct ParameterExpression { + type : ParameterType } Expression <..> ParameterExpression ParameterExpression o-- ParameterType struct UnaryExpression { + target : Expression* + operator_object : UnaryOperator } Expression <..> UnaryExpression UnaryExpression o-- UnaryOperator struct BinaryExpression { + left : Expression* + right : Expression* + operator_object : BinaryOperator } Expression <..> BinaryExpression BinaryExpression o-- BinaryOperator struct FunctionCallExpression { + arguments : std::vector<Expression*> + function : MathFunction } Expression <..> FunctionCallExpression FunctionCallExpression o-- MathFunction class ExpressionMemoryPool { + create<T>(args...) : Expression* } ExpressionMemoryPool ..> Expression class ExpressionEvaluator { + operator()(expression : const Expression&, parameter : Real, result : Real&) } class ExpressionPtr ExpressionPtr o-- Expression ExpressionPtr o-- ExpressionMemoryPool } package parser { class ExpressionParser { + operator()(expression_str : std::string) : ExpressionPtr } ExpressionParser o-- MathFunctionList ExpressionParser o-- ConstantList ExpressionParser ..> ExpressionPtr } package plotter { struct RGBColor { + r : uint8_t + g : uint8_t + b : uint8_t } struct Point { + x : Real + y : Real } class Image <<typedef>> { using Image = cv::Mat } class PlotRange { + x_range() : std::pair<Real, Real> + y_range() : std::pair<Real, Real> } struct PlotConfig class FunctionSampler { + range(value : PlotRange) + config(value : PlotConfig) + operator()(function : ExpressionPtr) : std::vector<Point> } FunctionSampler o-- PlotRange FunctionSampler o-- PlotConfig FunctionSampler ...> ExpressionPtr FunctionSampler ..> Point class Plotter { + range(value : PlotRange) + config(value : PlotConfig) + write_background(image : Image&) + write_curve(samples : std::vector<Point>, color : RGBColor, image : Image&) } Plotter o-- PlotRange Plotter o-- PlotConfig Plotter ..> Point Plotter ..> RGBColor Plotter ..> Image } } @enduml

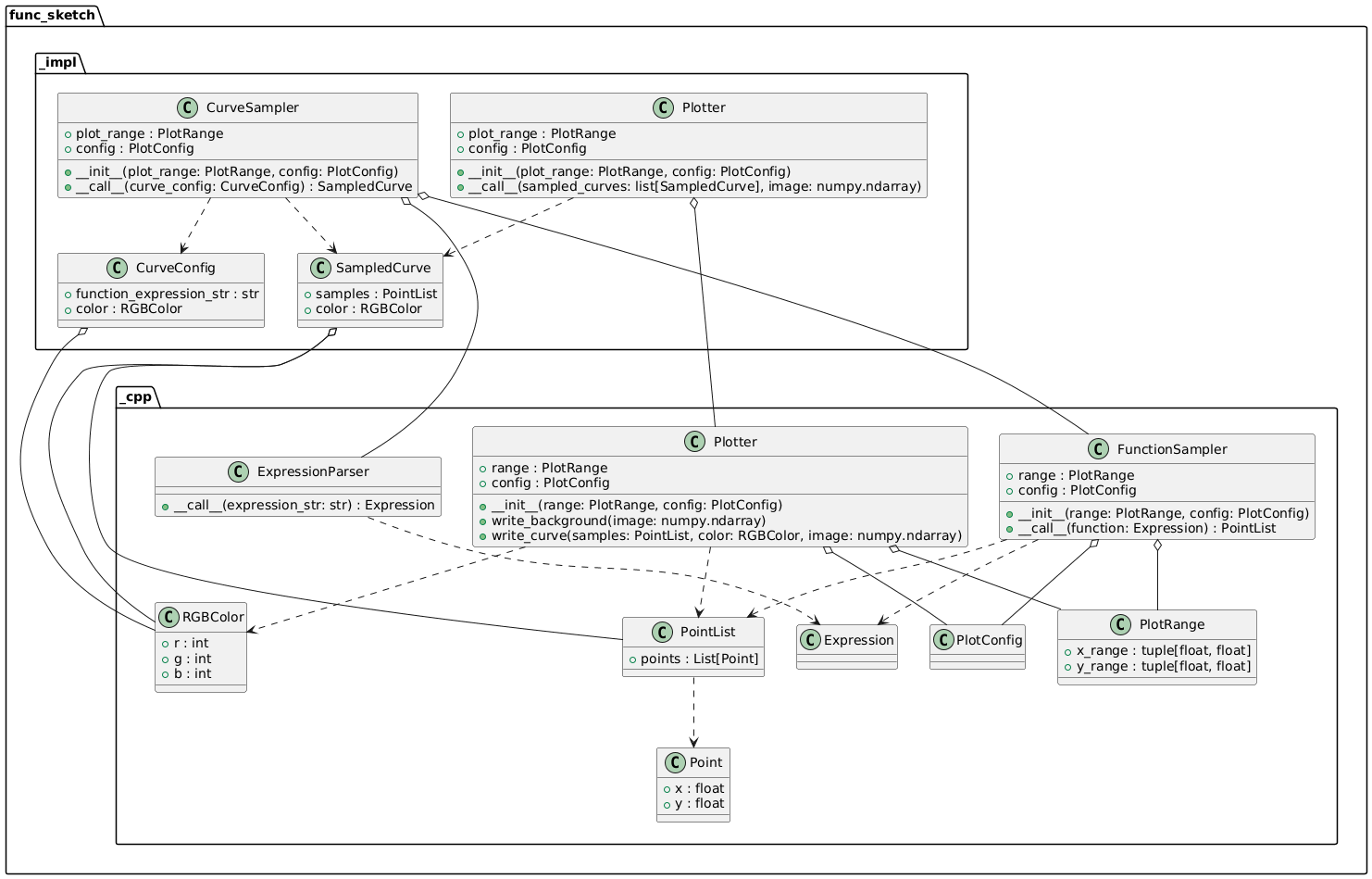

Python Classes#

@startuml classes_python package func_sketch { package _cpp { class Expression class ExpressionParser { + __call__(expression_str: str) : Expression } ExpressionParser ..> Expression class RGBColor { + r : int + g : int + b : int } class Point { + x : float + y : float } class PointList { + points : List[Point] } PointList ..> Point class PlotRange { + x_range : tuple[float, float] + y_range : tuple[float, float] } class PlotConfig class FunctionSampler { + __init__(range: PlotRange, config: PlotConfig) + range : PlotRange + config : PlotConfig + __call__(function: Expression) : PointList } FunctionSampler o-- PlotRange FunctionSampler o-- PlotConfig FunctionSampler ..> Expression FunctionSampler ..> PointList class Plotter { + __init__(range: PlotRange, config: PlotConfig) + range : PlotRange + config : PlotConfig + write_background(image: numpy.ndarray) + write_curve(samples: PointList, color: RGBColor, image: numpy.ndarray) } Plotter o-- PlotRange Plotter o-- PlotConfig Plotter ..> PointList Plotter ..> RGBColor } package _impl { class CurveConfig { + function_expression_str : str + color : RGBColor } CurveConfig o-- RGBColor class SampledCurve { + samples : PointList + color : RGBColor } SampledCurve o-- PointList SampledCurve o-- RGBColor class CurveSampler { + __init__(plot_range: PlotRange, config: PlotConfig) + plot_range : PlotRange + config : PlotConfig + __call__(curve_config: CurveConfig) : SampledCurve } CurveSampler o-- ExpressionParser CurveSampler o-- FunctionSampler CurveSampler ..> CurveConfig CurveSampler ..> SampledCurve class Plotter { + __init__(plot_range: PlotRange, config: PlotConfig) + plot_range : PlotRange + config : PlotConfig + __call__(sampled_curves: list[SampledCurve], image: numpy.ndarray) } Plotter o-- func_sketch._cpp.Plotter Plotter ..> SampledCurve } } func_sketch._impl .[hidden].. func_sketch._cpp @enduml
